Generic Webhook — Flow

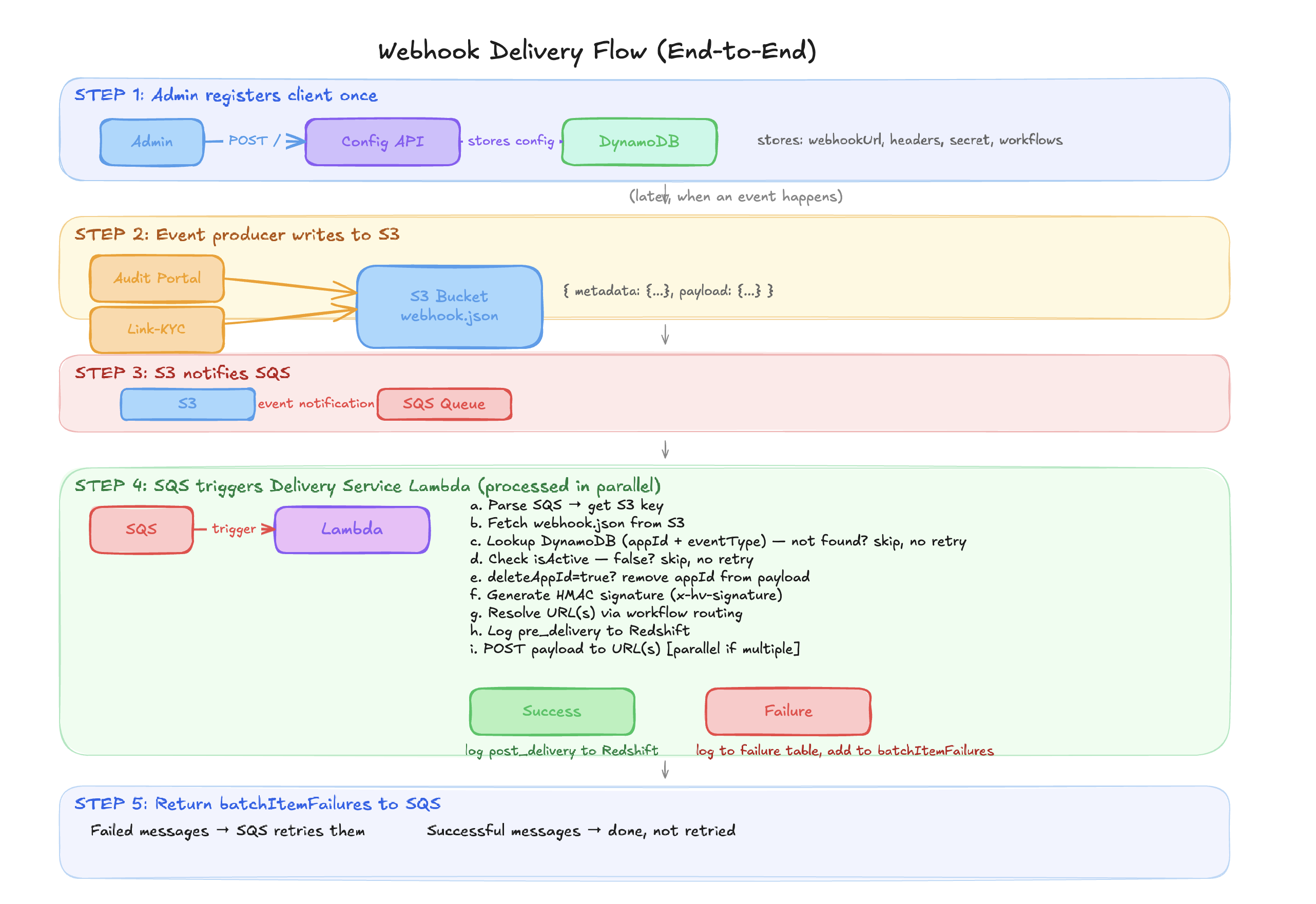

How a webhook gets delivered - the full flow

Understanding the end-to-end sequence

1. Admin registers client config via Configuration API
   (webhook URL, headers, HMAC secret, workflow routing)
              ↓ stored in DynamoDB

2. Event happens (transaction completes, link started, etc.)
              ↓

3. Producer (audit-portal or link-kyc) writes webhook.json to S3
   audit-portal → bucket: prod-generic-webhook-ind
   link-kyc     → bucket: hv-generic-webhook
              ↓

4. S3 notifies SQS queue
              ↓

5. SQS triggers Delivery Service Lambda (in batches)
              ↓

6. For each SQS message, Lambda:
   a. Parses message → extracts S3 bucket + key
   b. Fetches webhook.json from S3
   c. Looks up client config in DynamoDB (appId + eventType)
   d. Checks isActive - skips if false
   e. Removes appId from payload if deleteAppId = true
   f. Generates HMAC-SHA256 signature
   g. Resolves target URL(s) via workflow routing
   h. Logs pre_delivery to Redshift
   i. POSTs payload to client's webhook URL
   j. Logs post_delivery (or failure) to Redshift
              ↓

7. Failed messages are returned to SQS for retry
   (only the failed ones - successful ones are not re-processed)

---

The two important event producers right now

Producer	Repo	What it sends
Audit Portal	gitlab.com/hvlabs/kyc/audit-portal	KYC transaction results — final status, intermediate state, manual review decisions, CPR resets
Link-KYC	gitlab.com/hvlabs/kyc/global-dkyc	Link-level events — when a user starts a link-kyc flow, or tries to use an expired link

The event types

Audit Portal

Event Type	When it fires
FINISH_TRANSACTION_WEBHOOK	Transaction is fully complete — all KYC checks synced, final status reached (approved/declined)
INTERMEDIATE_TRANSACTION_WEBHOOK	Transaction in kyc_in_progress state — not all checks done yet
MANUAL_REVIEW_STATUS_UPDATE	A reviewer manually approves or declines in the portal
APPLICATION_STATE_RESET	CPR (Cross-Platform Resume) state reset — subtypes: COMPLETE_STATE_RESET, RESET_FROM_SPECIFIC_STEP

A webhook only fires if that event type is listed in the client's events array in audit-portal's configs table.

Link-KYC

Event Type	When it fires	Can be disabled?
START_TRANSACTION_WEBHOOK	User opens a link and starts the KYC flow (POST /v1/link-kyc/start)	Yes — startTransactionWebhookEnabled in portal config
EXPIRED_LINK_USED	User attempts to use a link that has already expired	No — always fires

---

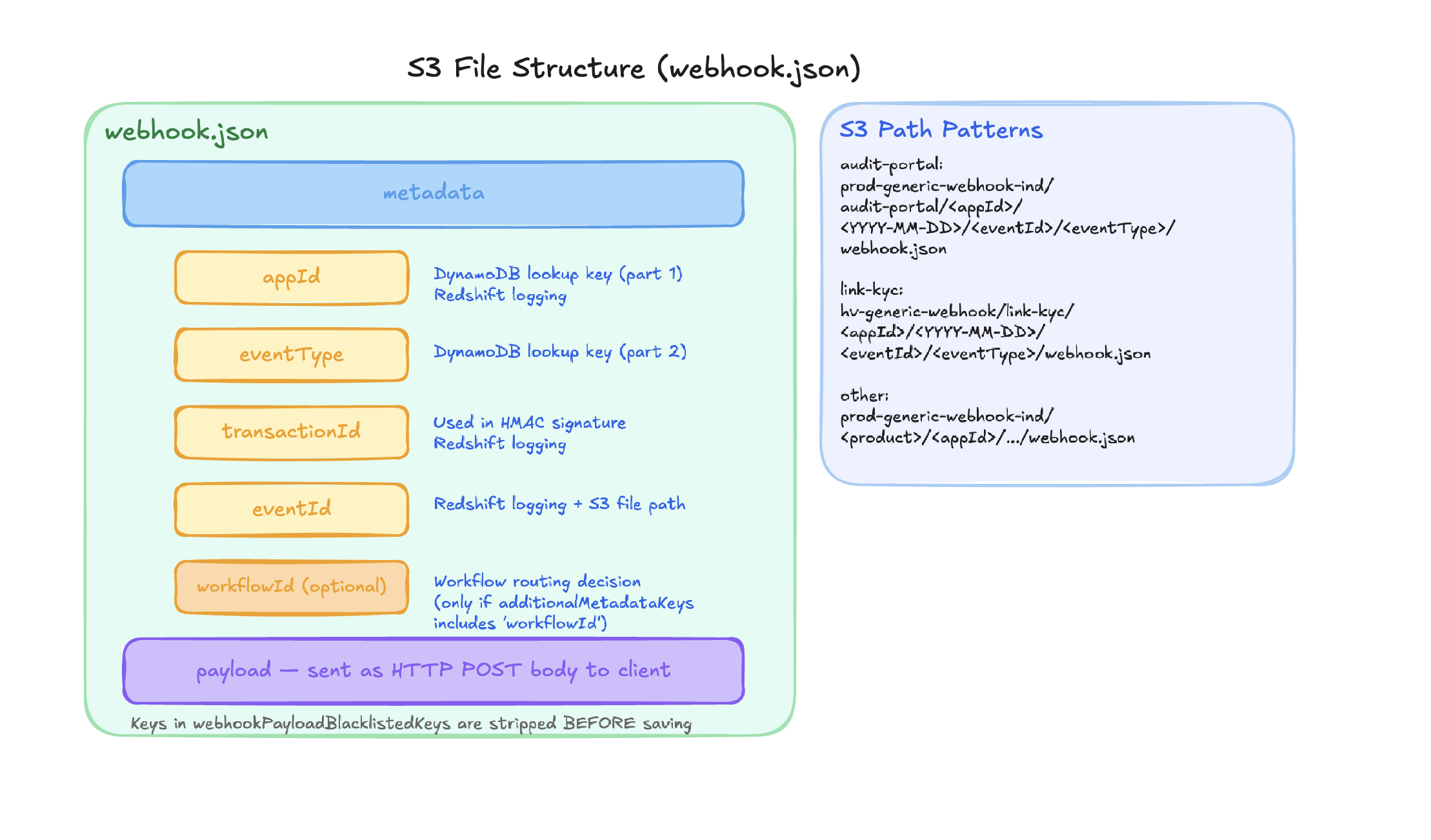

What gets saved to S3

Every webhook event is saved as webhook.json to S3 before delivery. The file has two sections:

{
  "metadata": {
    "appId": "55a3a6",
    "transactionId": "txn-abc-123",
    "eventType": "FINISH_TRANSACTION_WEBHOOK",
    "eventId": "evt-456",
    "workflowId": "premium-kyc"
  },
  "payload": {
    "appId": "55a3a6",
    "transactionId": "txn-abc-123",
    "applicationStatus": "auto_approved",
    "eventId": "evt-456",
    "eventVersion": "1.0.0",
    "eventTime": "2024-12-04T10:00:00.000Z",
    "eventType": "FINISH_TRANSACTION_WEBHOOK"
  }
}

Section	Used for	Sent to client?
metadata	Internal routing — DynamoDB lookup, HMAC generation, Redshift logging	No
payload	The actual webhook body	Yes

S3 paths:

Producer	Bucket	Path
Audit Portal	prod-generic-webhook-ind	audit-portal/<appId>/<YYYY-MM-DD>/<eventId>/<eventType>/webhook.json
Link-KYC	hv-generic-webhook	link-kyc/<appId>/<YYYY-MM-DD>/<eventId>/<eventType>/webhook.json

---

What the client receives

POST https://client.example.com/webhook
Content-Type: application/json
Authorization: Bearer client-token        ← from their DynamoDB config headers
x-hv-signature: a1b2c3d4e5f6...           ← HMAC-SHA256 signature

{
  "appId": "55a3a6",
  "transactionId": "txn-abc-123",
  "applicationStatus": "auto_approved",
  "eventId": "evt-456",
  "eventVersion": "1.0.0",
  "eventTime": "2024-12-04T10:00:00.000Z",
  "eventType": "FINISH_TRANSACTION_WEBHOOK"
}

Only the payload object is sent. metadata is never exposed to the client.

---

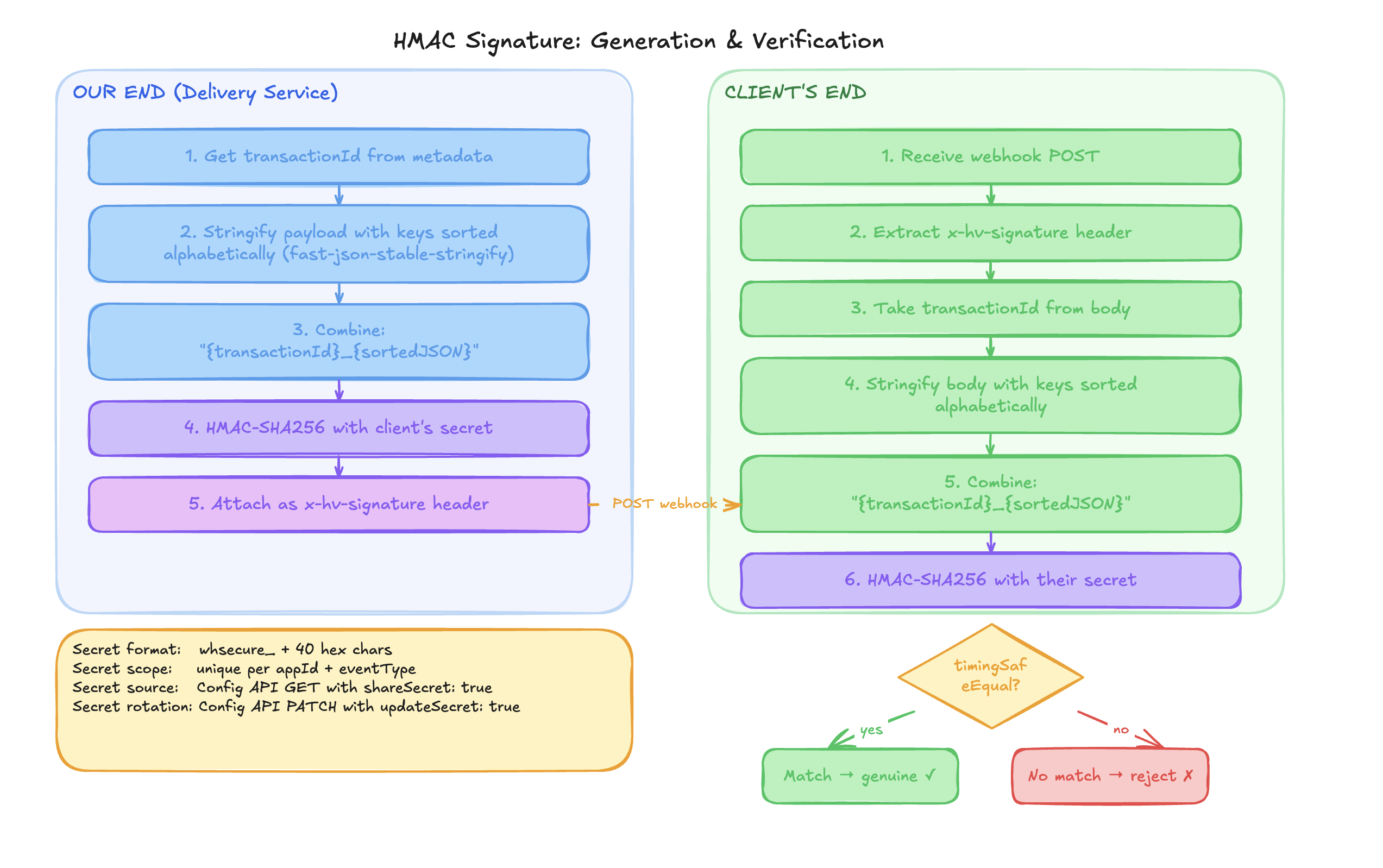

HMAC signature

Every webhook is signed so the client can verify it genuinely came from HyperVerge.

How we generate it

signedPayload = "{transactionId}_{fast-json-stable-stringify(payload)}"
signature     = HMAC-SHA256(signedPayload, secret)
header        = x-hv-signature: {signature}

fast-json-stable-stringify sorts JSON keys alphabetically before stringifying — this ensures the same payload always produces the same signature regardless of key insertion order.

Workflow-based routing

Clients can route webhooks to different URLs depending on which workflow the transaction used.

Example: A client has standard-kyc and premium-kyc workflows and wants premium transactions delivered to a separate endpoint.

DynamoDB config

{
  "appId": "55a3a6",
  "eventType": "FINISH_TRANSACTION_WEBHOOK",
  "webhookUrl": "https://client.com/default-webhook",
  "workflows": {
    "standard-kyc": ["https://client.com/standard-webhook"],
    "premium-kyc":  ["https://client.com/premium-webhook1", "https://client.com/premium-webhook2"]
  }
}

Routing logic:

1. If metadata.workflowId exists AND matches a key in workflows AND the URL list is non-empty → use those URLs (in parallel)
2. Otherwise → use default webhookUrl
